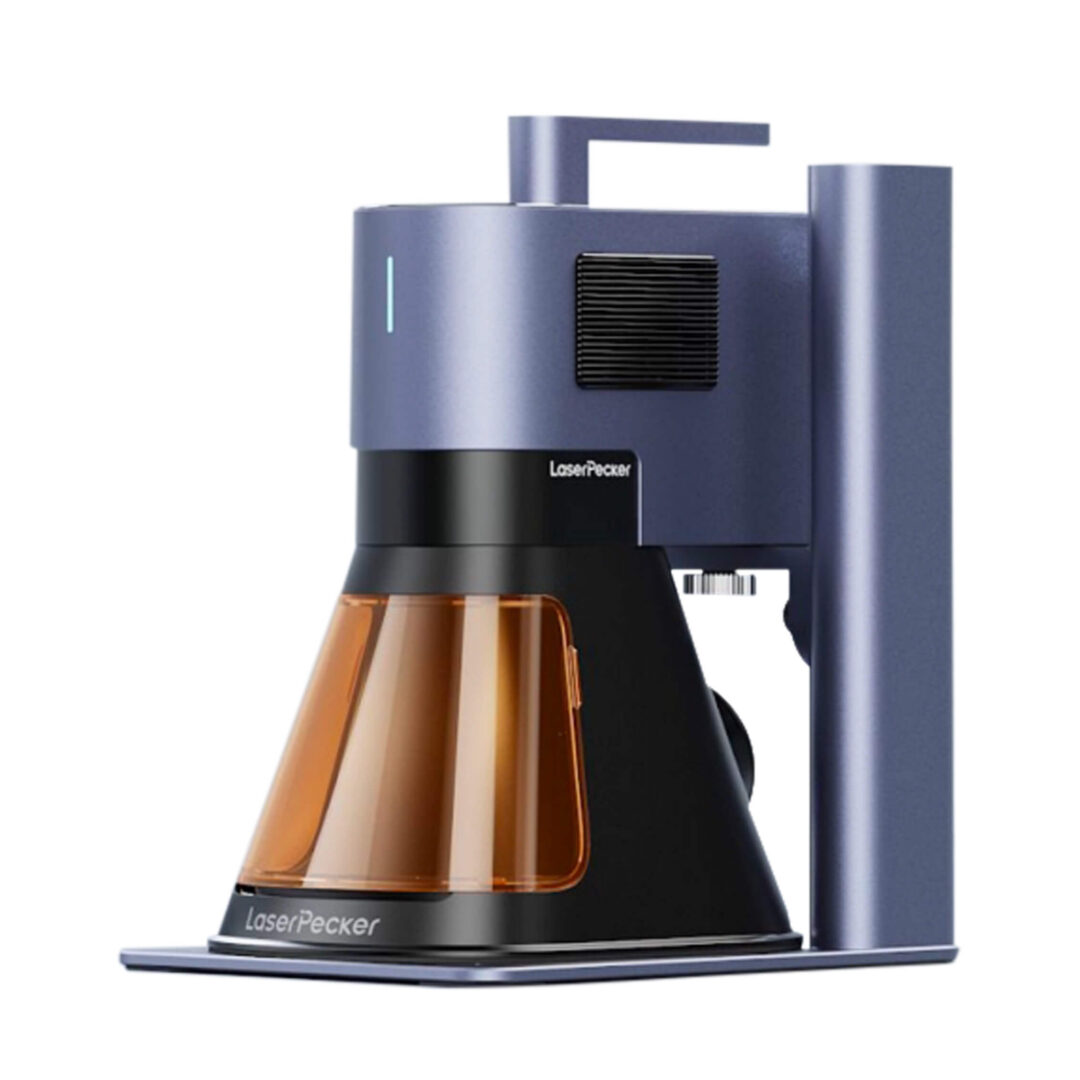

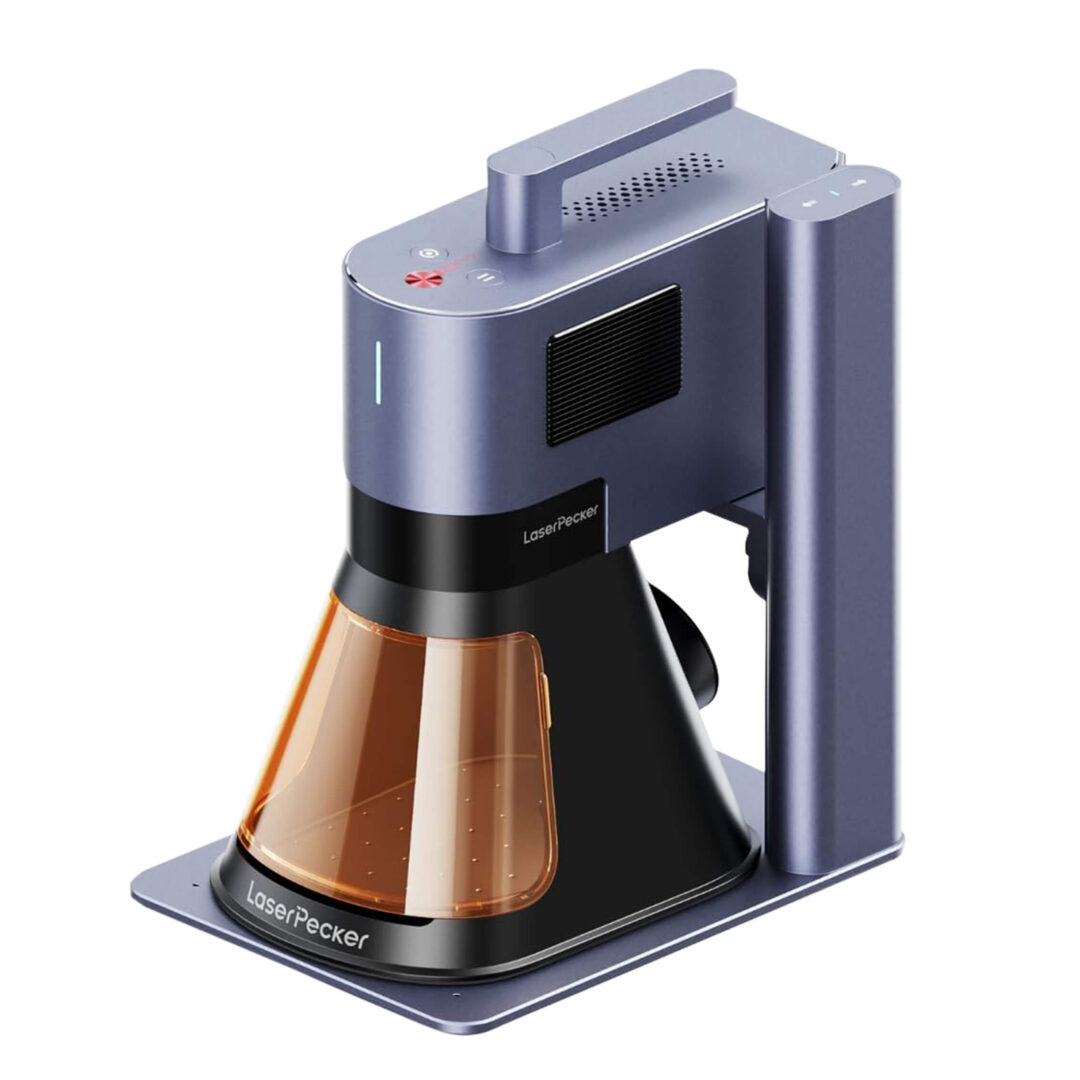

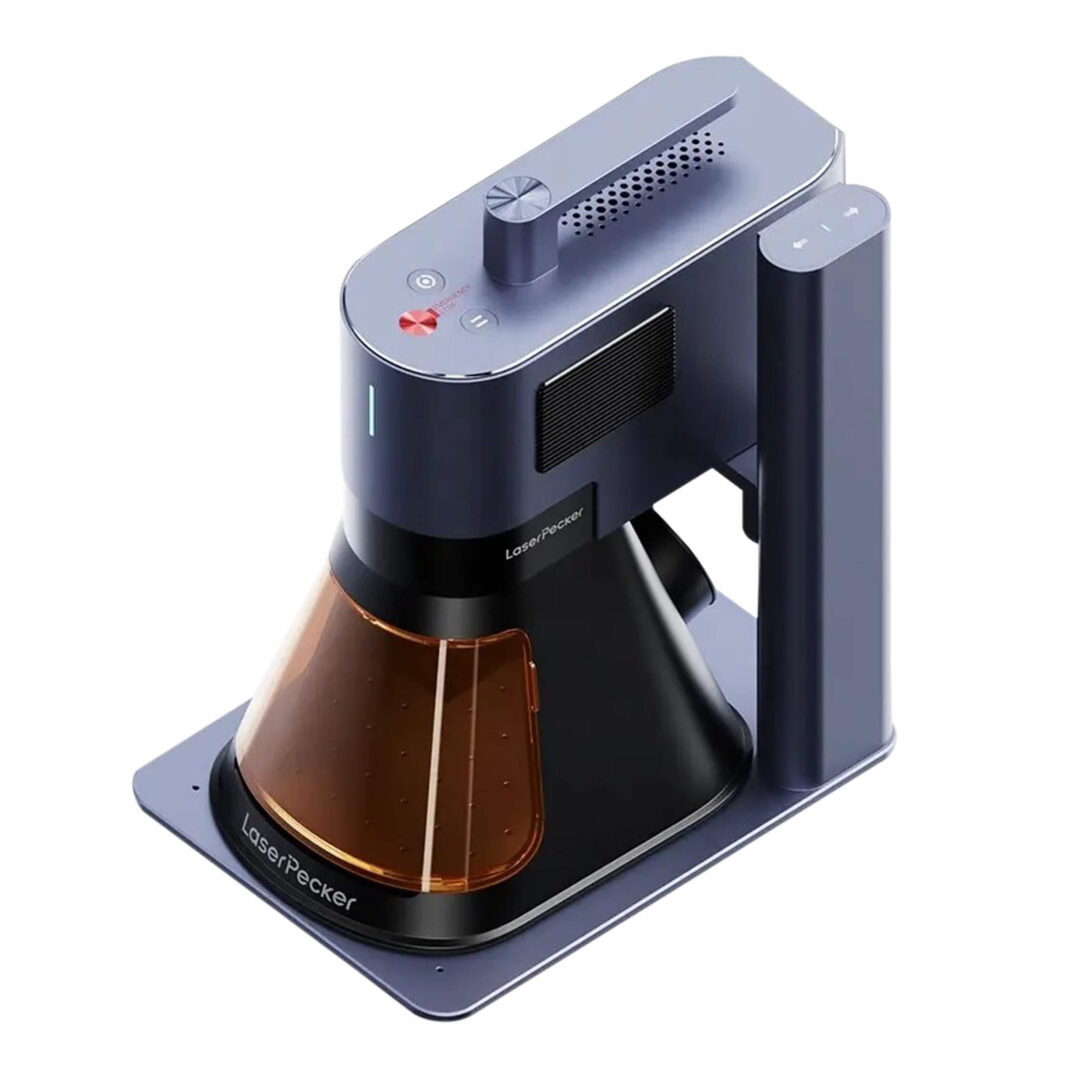

The LaserPecker LP5 is a smart, dual-laser desktop engraver combining a 20W Fiber laser
and 20W Diode laser. Achieve deep engraving, 3D embossing, metal cutting, and vibrant
multi-color results on virtually any material. With 10,000mm/s speed, 0.0027mm precision, and a compact, portable design, the LP5 ensures safe, efficient, and professional laser
engraving at home or in your business. Compatible with LaserPecker Design Space, mobile
app, and LightBurn.
Unlock unparalleled precision and productivity with the LaserPecker LP5 – The Smart 20W
Fiber + Diode Laser Engraver. Combining a 20W Fiber laser and a 20W Diode laser, the
LP5 is the world’s first dual-laser desktop engraver built for professional and small business
use. Experience deep engraving, grayscale embossing, metal cutting, and vibrant multi-color
engraving with unmatched speed and accuracy.
Designed for versatility, the LP5 can handle virtually any material—metal, wood, leather,
acrylic, stone, and more—while its compact, lightweight, and portable design ensures you
can work anywhere. The industrial-grade galvo system delivers ultra-fast 10,000mm/s
engraving speeds with 0.0027mm precision, and the intelligent Smart Path Algorithm
optimizes every job for efficiency.
With a Class 1 Safety Enclosure, smart batch fill, liftable base, and dual access doors, the
LP5 guarantees safe, reliable, and hassle-free operation in any indoor environment. Control
your projects effortlessly via LaserPecker Design Space, mobile app, or LightBurn
software. Whether you’re producing high-volume custom products, crafting detailed designs,
or exploring new material possibilities, the LP5 is your all-in-one solution for precision laser
engraving and cutting.
Key Features:
● Dual 20W Fiber + Diode laser system for unmatched material versatility
● 10,000mm/s engraving speed and 0.0027mm precision
● Deep engraving, 3D embossing, metal cutting, and vibrant multi-color engraving
● Compact, portable, and ergonomic design for flexibility anywhere
● Safe Class 1 enclosure with smart batch fill and liftable base
● Compatible with LaserPecker Design Space, mobile app, and LightBurn
Elevate your creative projects and business with the LaserPecker LP5—engineered for
precision, speed, and limitless possibilities.
R64 995,00

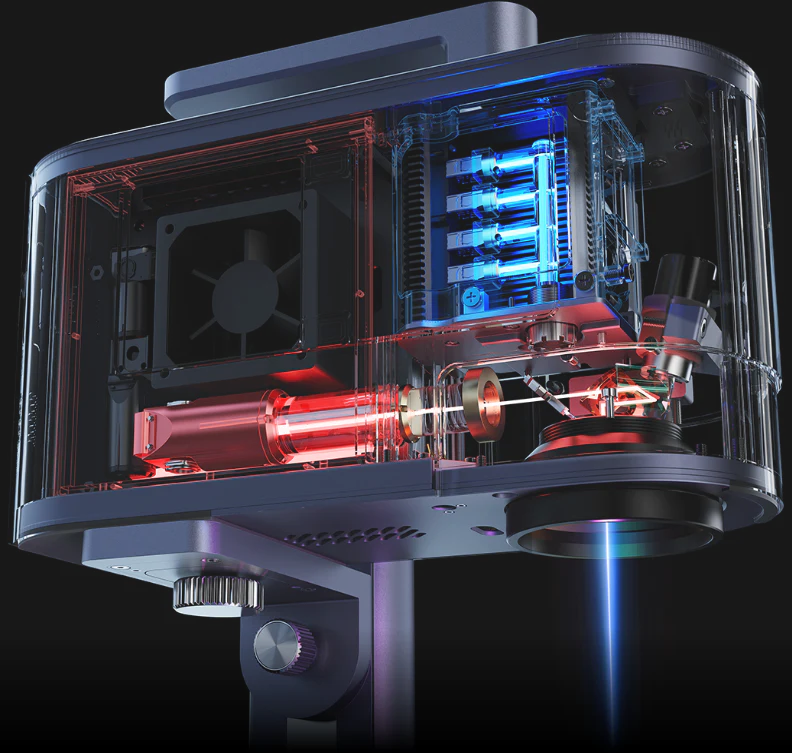

LP5 integrates a powerful 20W Fiber laser with a robust 20W Diode laser to redefine desktop fabrication. This synergy delivers unmatched material adaptability—enabling you to process virtually every common material, from precision metalwork to organic substrates—while guaranteeing superior processing speed and quality for every project.
Achieve deeper engraving and thin metal cutting with 4X the power of standard 5W lasers. Dedicated to permanent, industrial-grade results on metals and plastics.
Optimized for speed and absorption, conquering cutting and engraving on non-metallic materials, including wood, leather, acrylic, and more.
Our system masters everything from deep engraving to 3D relief, delivering impeccable finishes on metal, wood, and stone. With built-in free 3D resources, stunning results are just a click away—complexity simplified, workflow streamlined.
Achieve precise, clean-edged metal cutting with zero thermal deformation. This capability ensures your work maintains the highest quality and allows for flawless fabrication and professional-grade detailing.
0.4mm Iron, 2 passes
0.2mm Aluminum, 1 pass
0.5mm Stainless Steel, 4 passes
0.5mm Brass, 2 passes
12mm Black Acrylic, 1 pass
15mm Black Acrylic, 2 passes

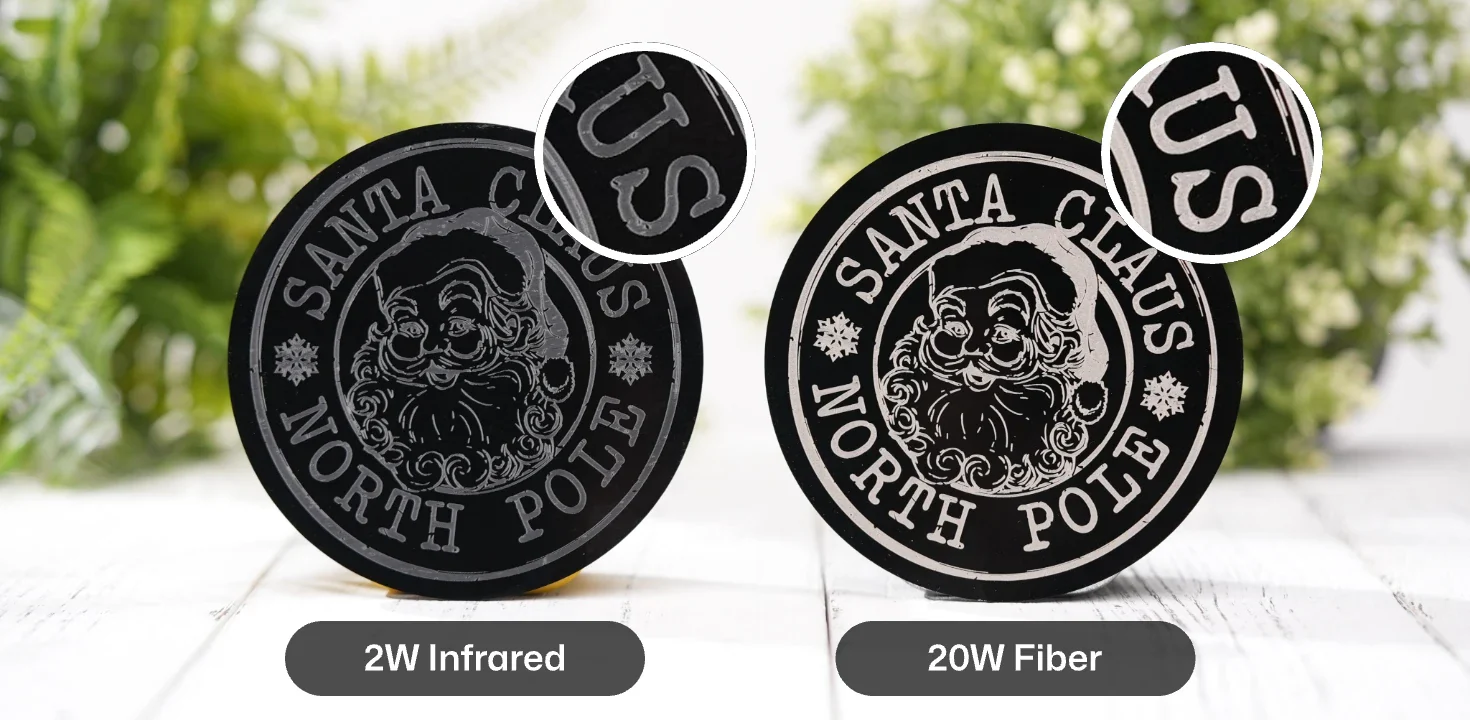

Delivers deep engraving and clean cutting through concentrated high power. Ideal for permanent marks on valuable metals and complex, durable designs.
The 20W fiber laser enables rapid batch production, delivering faster turnaround without quality loss—shortening lead times and expanding client capacity.
Achieves 0.0027mm precision via a smaller spot, enabling intricate work and expanded service offerings beyond basic marking.
Industrial-grade fiber technology delivers extended lifespan and maximum ROI.
Our Industrial-Grade Galvo System delivers lightning-fast engraving at speeds up to 10,000mm/s, slashing batch processing time and redefining efficiency.
Achieve flawless detail replication with 0.0027mm precision and repeatability, ensuring professional results with zero defects.
The integrated Smart Path Algorithm automatically calculates the most efficient route, reducing wasted motion and lowering your cost per unit.
| Type | Details |
|---|---|
| Product Size | Laser Unit: 255 x 98 x 183mm Electric Stand: 198 x 286 x 323mm Conical Protective Cover: 167 x 231 x 160mm |
| Product Weight | Laser Unit: 3.36 kg Electric Stand: 2.28 kg Conical Protective Cover: 0.38 kg Total Weight: 6.02 kg |
| Laser Type | 20W 450nm Blue Diode Laser 20W 1064nm Fiber Laser |
| Supported Materials | 20W 1064nm Fiber Laser: |
| Working Area | 120 x 160 mm (Ellipse) 100 x 100 mm (Square) 160 x 300 mm (with the Slide Extension) |
| Max. Working Speed | 10000 mm/s |
| Cutting Depth | up to 1mm of brass, stainless steel, aluminum, and titanium sheets up to 20mm basswood up to 15mm thick black acrylic |
| Max. Processing Height | 137mm |
| Max. Rotary Engraving Diameter | 200 mm |
| Type | Details |
|---|---|
| Supported Software | LaserPecker Design Space Mobile App & LaserPecker Design Space PC Software & LightBurn |
| Operating System | Support iOS 9.0+, Android 7.0+, macOS 10+, Windows 10+ Compatible with LightBurn |
| Connection Method | USB, Wi-Fi |
| Supported Files | PC Software: G-code/JPG/PNG/BMP/SVG/DXF etc. Mobile App: G-code/JPG/PNG/SVG |
| Preview Method | Rectangle Preview/Outline Preview/Center Point Preview |
| Type | Details |
|---|---|
| Laser Spot Size | 0.08 x 0.1 mm (20W Diode Laser) 0.06 x 0.06 mm (20W Fiber Laser) |
| Positioning Precision | 0.0027mm |
| Image Resolution | 1K/2K/4K/8K |
| Motion Accuracy | 0.0027mm |
| Type | Details |
|---|---|
| Safety Certification | CE / ROHS / FCC / FDA / NCC / KC / UKCA / TELEC / SRRC |
| Input Power | DC(24V⎓7.5A) 180W AC(100-240V,50-60Hz) |
| Supported Language | English, German, Spanish, French, Japanese, Korean, Polish, Russian, Portuguese, Simplified Chinese and Traditional Chinese |

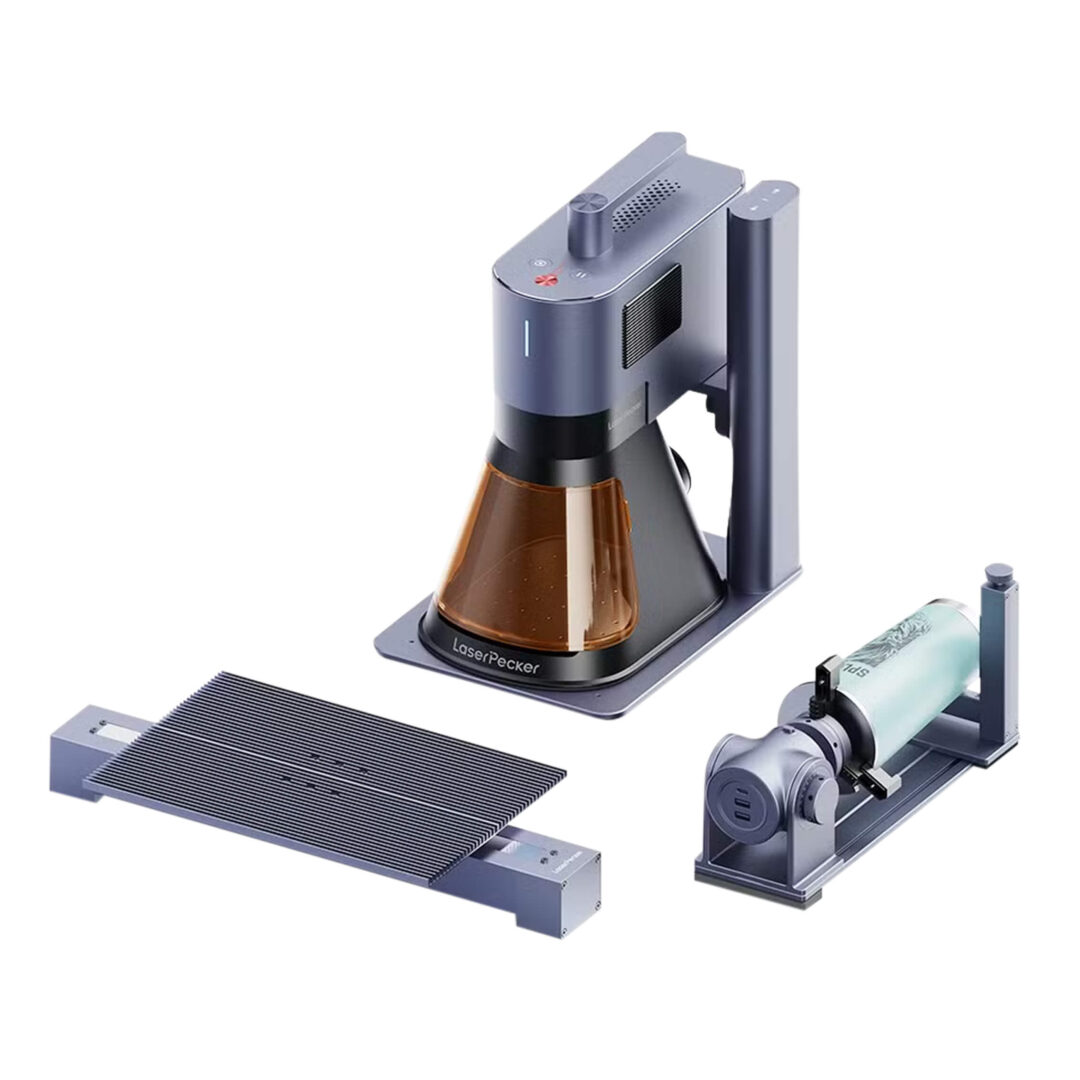

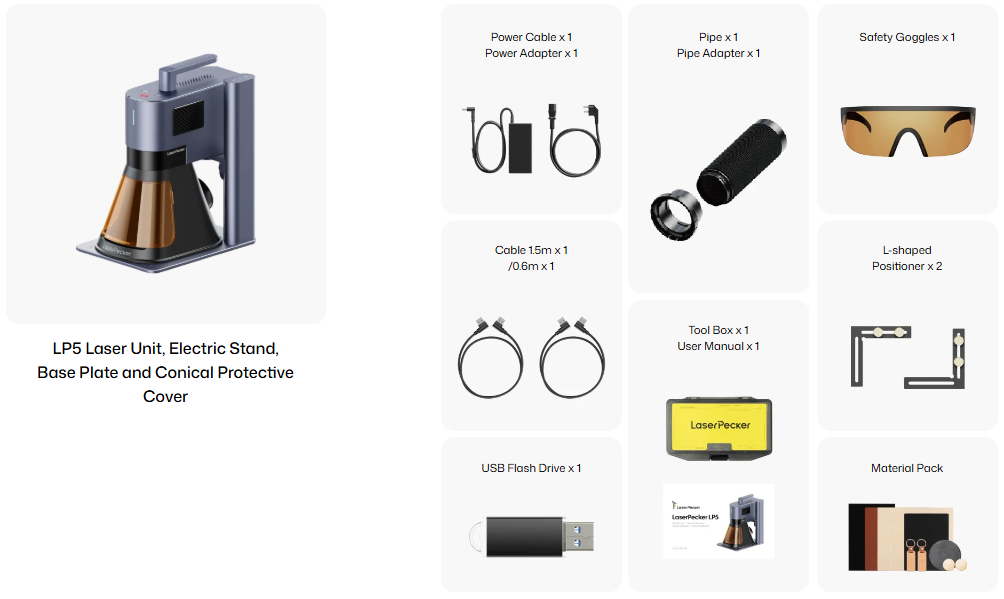

The LP5 works with the following accessories:

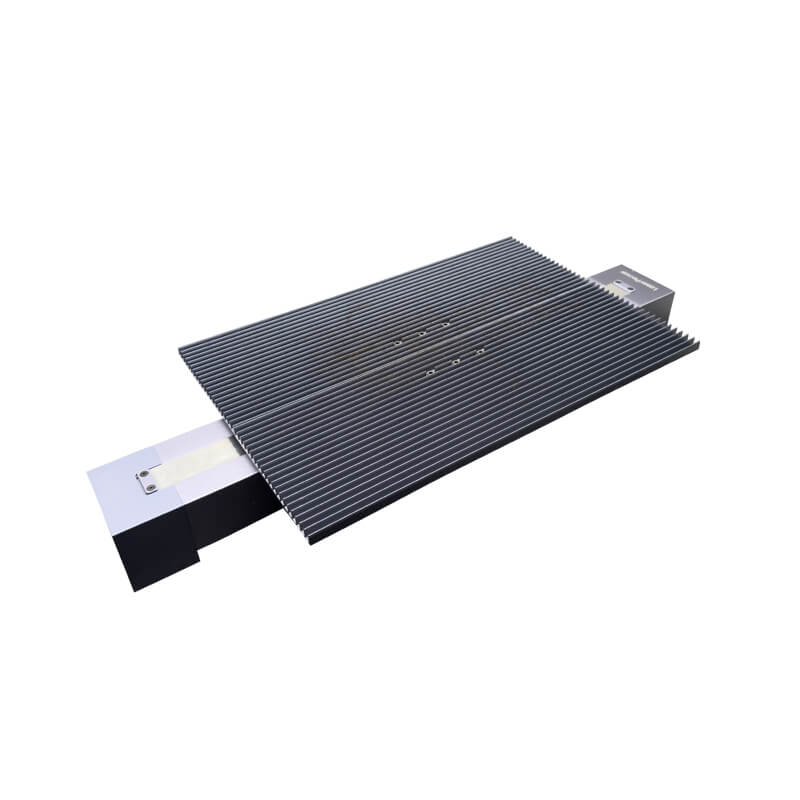

Slide extension -expand the working area;

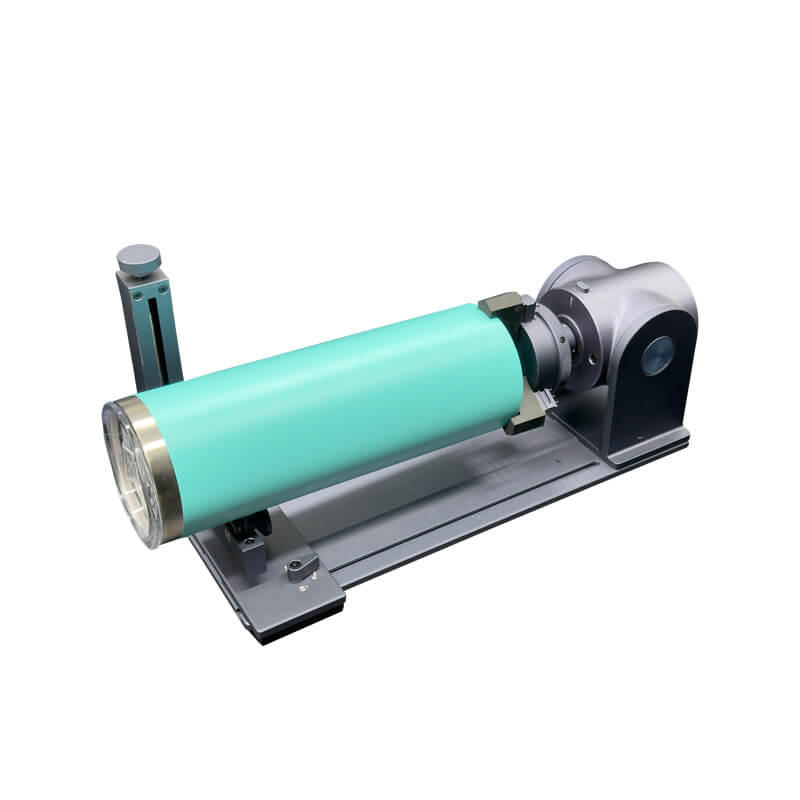

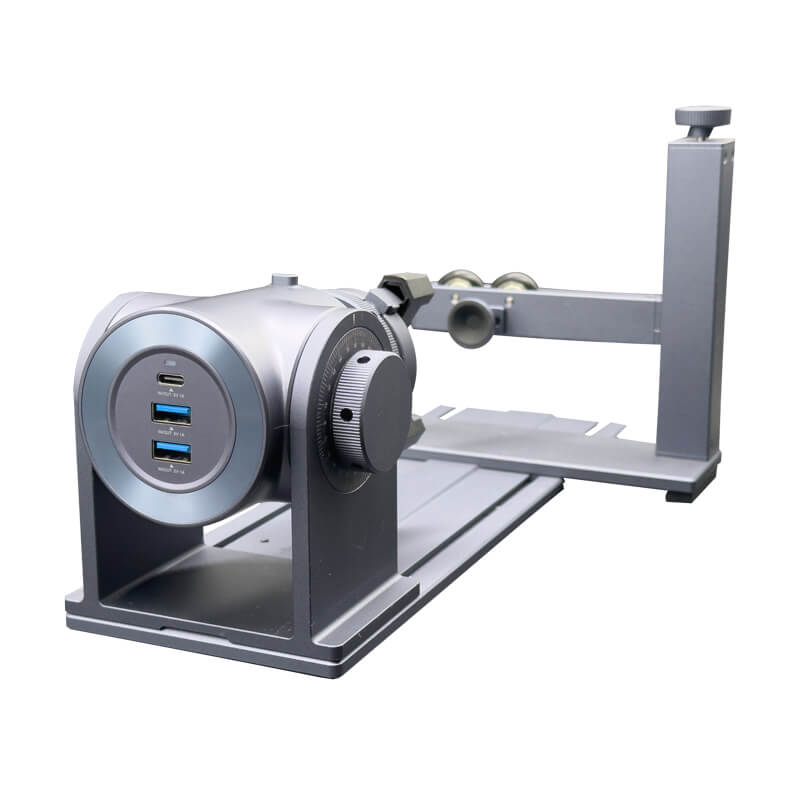

Rotary extension -irregular cylinders and objects from 1mm to 145mm in diameter;
Air Purifier, Safety Enclosure; Cutting plate; Powerpack Plus.
Equipped with dual laser sources, LP5 has 20W fiber and 20W blue diode laser. It can engrave almost ALL common materials during daily usage.
Diode lasers perform best on wood, dark acrylic, leather, slate, glass, ceramic, etc., while fiber lasers can engrave clearly on all-metals(stainless steel, aluminum, gold, silver, iron, platinum) and plastic.
The Safety Enclosure is available to order now.
The camera module is NOT in any current LP5 bundles. It comes with the Safety Enclosure.
If you want to use the camera module function, you will need to purchase our Safety Enclosure separately.
LP5 can perform deep engraving, 3D grayscale embossing and even metal cutting.
20W Fiber for Metal Cutting:
0.4mm Iron, 2 passes
0.2mm Aluminum, 1 pass
0.5mm Stainless Steel, 4 passes
0.5mm Brass, 2 passes
20W Diode for Wood & Acrylic Cutting:
12mm Black Acrylic, 1 pass
15mm Black Acrylic, 2 passes
LP5: Most Efficient Batch Engraving on almost all materials- Faster and more power. LP5 has both 20W Fiber and 20W Diode Laser with its industrial-grade speed 10000mm/s, 120mm x 160mm (Basic)/160mm x 300mm (with the Slide Extension) engraving area. It can do deep engraving for high-contrast markings, vivid 3d grayscale embossing, ultra-precise metal cutting.
LP4: The LP4 also features a dual laser system, combining 2W infrared laser and 10W diode laser. It is up to 4000mm/s speed, 160mm x 120mm (Basic)/160mm x 300mm (with the Slide Extension) engraving area. It is lighter and great for professional users, hobbyists, etc.
The LP5 works in harmony with LaserPecker Design Space Software (PC) and App, as well as Lightburn.
